DELFT 18KD/988

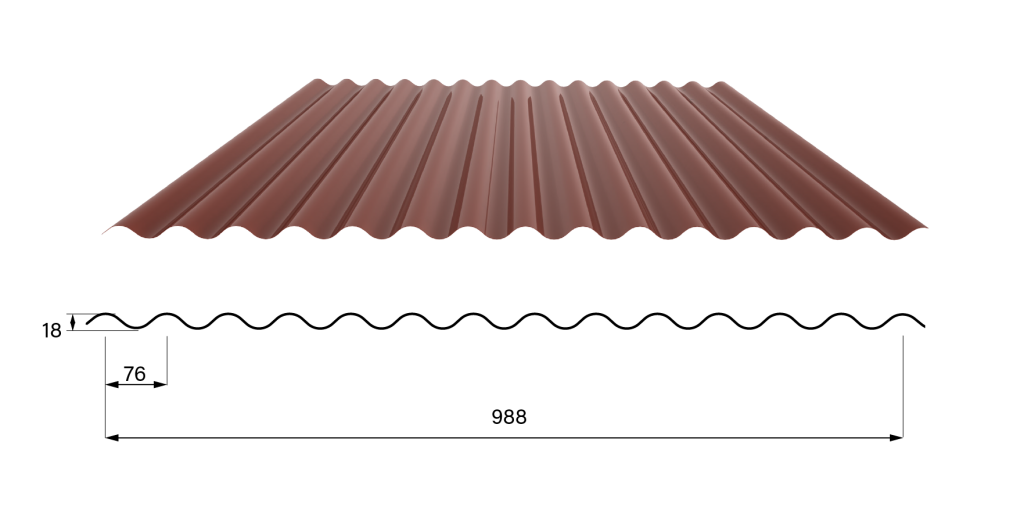

DELFT's cold roof profile 18KD/988 has a profile centre-to-centre distance of 76mm with a profile height of 18mm and an effective width of 988mm. The roof profile has a unique sinusoidal profile for an attractive appearance.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 18KD/988

DELFT's cold roof profiles are a cost-efficient solution for large spans and loads. The roof profile can be fitted with an anti-condensation felt, preventing condensation problems.

  • Most used sinusoidal profile in the Netherlands
  • Available with different exterior coatings
  • Available in various steel grades and variable thickness
  • Available with a maximum length of 8 metres
  • Optionally fitted with anti-condensation felt

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.63

6.3

2.50

0.70

7.0

2.75

0.75

7.5

3.00

Downloads

Options

Anti-condensation felt

Condensation that can form on the underside of the cold roof profiles is undesirable because it adversely affects the lifespan and falling drops of condensation are not desired on the inside. The falling drops can cause damage to any stored products and/or goods. On request, Delft can provide the cold roof profiles with anti-condensation felt on the underside.

When using anti-condensation felt, there must be good ventilation so that the absorbed condensation can dry sufficiently.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.

Curious about what we can do for you?

We are here to help you further. Feel free to contact us for more information or a customised quote. We look forward to hearing from you!

Request a quote
