DELFT 106R/750

DELFT's 106mm high profile, the best-known warm roof profile in the market. High profiles are a cost-efficient solution when combining large spans and high loads.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 106R/750

The high profile is used as a supporting profile for insulation and a waterproof roof covering. Thus, the roof is protected from the elements. The 106R/750 is an efficient and durable solution for various construction projects.

  • Available in variable steel thickness for a cost-efficient solution for any span
  • Available with a maximum length of 25.1 metres

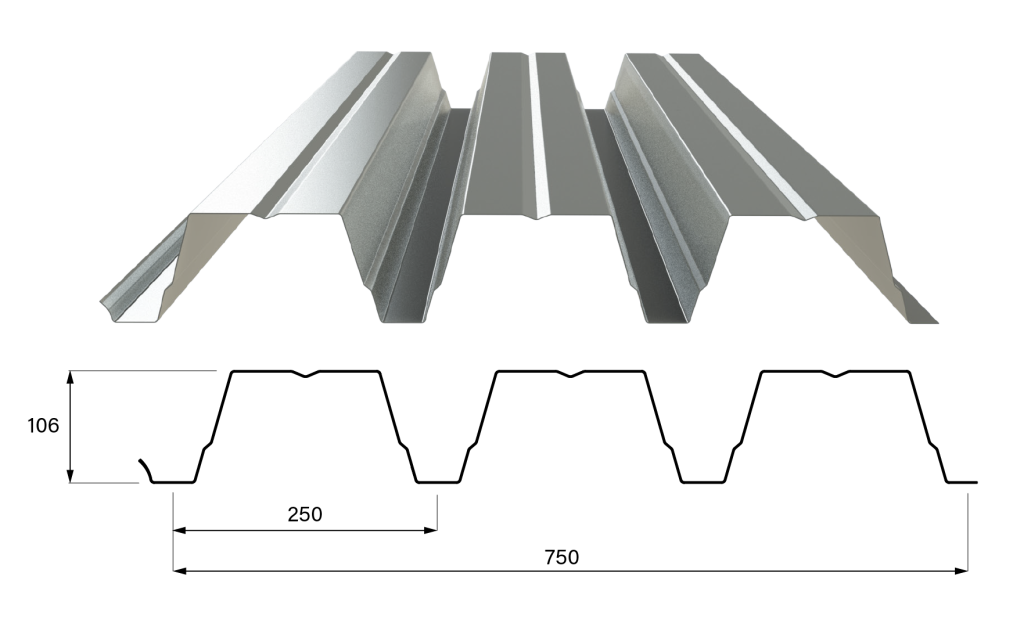

  • 106mm profile
  • Available with different bottom finishes
  • Perforated variant available for excellent sound absorption

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.70

9.2

148.06

0.75

9.8

163.45

0.88

11.5

200.53

1.00

13.1

235.36

Downloads

Options

Perforate

Sound absorption is a must in many industrial projects to achieve a pleasant acoustic indoor climate. The perforation allows the sound waves to penetrate the applied insulation instead of being reflected into the room.

Please note that when plates or profiles are perforated, this affects the strength and stiffness of the profiles. Check the technical data sheets for more information or ask your contact person at Delft.

Anti-condensation felt

Condensation that can form on the underside of the cold roof profiles is undesirable because it adversely affects the lifespan and falling drops of condensation are not desired on the inside. The falling drops can cause damage to any stored products and/or goods. On request, Delft can provide the cold roof profiles with anti-condensation felt on the underside.

When using anti-condensation felt, there must be good ventilation so that the absorbed condensation can dry sufficiently.

DELFT Aqua Solution

Rainwater that remains in the flutes of roof panels during construction often causes water damage. Thanks to an innovative production process, we can provide our roof panels with drainage holes directly during rolling. We market our newest type of roofing sheet under the name 'DELFT Aqua Solution'. We meet the needs of (main) contractors, installers, assembly companies and project developers to prevent water accumulation during construction.

Curious about what we can do for you?

We are here to help you further. Feel free to contact us for more information or a customised quote. We look forward to hearing from you!
