All Cold roof profiles

DELFT 30KD/1100

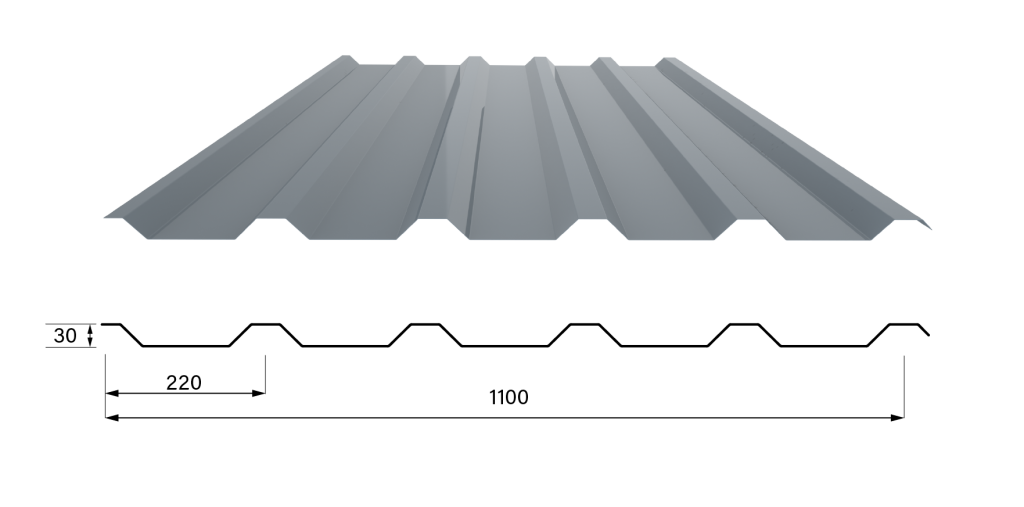

Uninsulated roof and external wall profile with a profile height of 30mm, an effective width of 1100mm and a profile width of 220mm with 5 profiles across the effective width. This makes the DELFT 30/1000 slightly more coarsely profiled than the DELFT 19/1090.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 30/1100

DELFT's uninsulated trapezoidal profiles are very suitable as an external wall finish on an insulating support structure such as a liner tray or carrier sandwich panel

  • Trapezoidal profile
  • Available with different exterior coatings
  • Available in various steel grades and variable thickness
  • Optionally fitted with anti-condensation felt

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.50

4.5

0.63

5.6

0.70

6.2

0.75

6.7

Downloads

Options

Anti-condensation felt

Condensation that can form on the underside of the cold roof profiles is undesirable because it adversely affects the lifespan and falling drops of condensation are not desired on the inside. The falling drops can cause damage to any stored products and/or goods. On request, Delft can provide the cold roof profiles with anti-condensation felt on the underside.

When using anti-condensation felt, there must be good ventilation so that the absorbed condensation can dry sufficiently.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.

Curious about what we can do for you?

We are here to help you further. Feel free to contact us for more information or a customised quote. We look forward to hearing from you!
