All Cold roof profiles

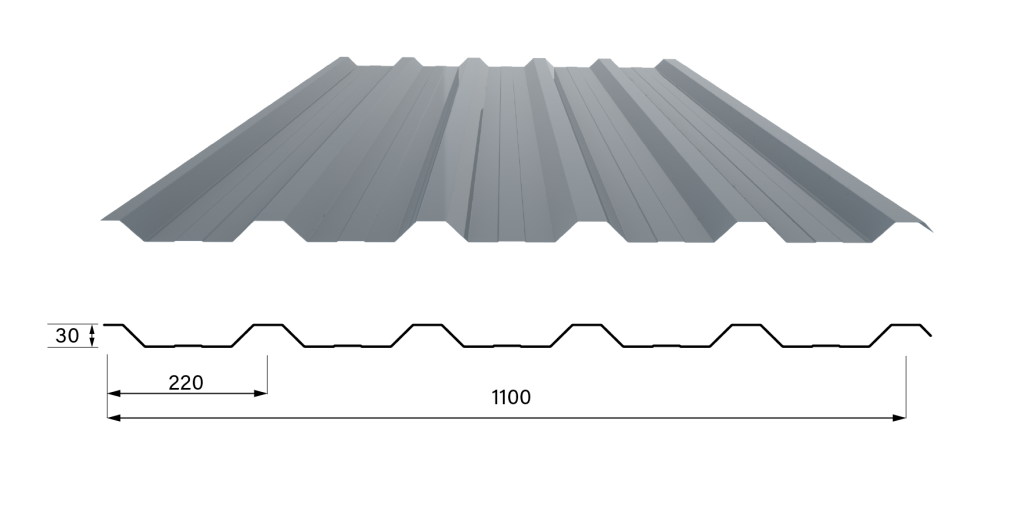

DELFT 30RKD/1100

Uninsulated roof and external wall profile with a profile height of 30mm, an effective width of 1100mm and a profile width of 220mm with 5 profiles across the effective width. With an extra dimple in the profiling for greater rigidity and a more refined look.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 30R/1100

DELFT's uninsulated trapezoidal profiles are very suitable as an external wall finish on an insulating support structure such as a liner tray or carrier sandwich panel.

  • Trapezoidal profile
  • Available with different exterior coatings
  • Available in various steel grades and variable thickness
  • Optionally fitted with anti-condensation felt

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.50

4.5

0.63

5.6

0.70

6.2

0.75

6.7

Downloads

Opties

Anti-condensation felt

Condensation that can form on the underside of the cold roof profiles is undesirable because it adversely affects the lifespan and falling drops of condensation are not desired on the inside. The falling drops can cause damage to any stored products and/or goods. On request, Delft can provide the cold roof profiles with anti-condensation felt on the underside.

When using anti-condensation felt, there must be good ventilation so that the absorbed condensation can dry sufficiently.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.

Curious about what we can do for you?

We are here to help you further. Feel free to contact us for more information or a customised quote. We look forward to hearing from you!
