DELFT 36KD/1000

The 36KD/1000 is a cold roof profile from DELFT, specially designed for uninsulated roofs. With a trapezoidal profile and a height of 36mm, this profile offers optimum stability.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 36KD/1000

The cold roof profile 36KD/1000 is a cost-efficient solution for large spans and loads. The profile can be fitted with an anti-condensation felt on the inside, preventing condensation problems.

  • Trapezoidal profile, with a maximum length of 15 metres

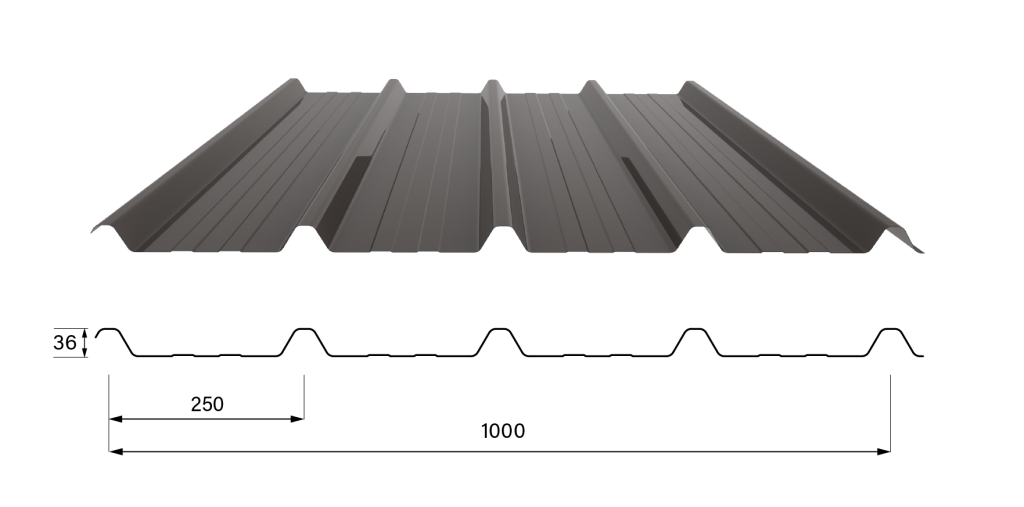

  • Profile height 36mm, 4 crowns over the effective width of 1000mm
  • Available with different exterior coatings
  • Available in various steel grades and variable thickness
  • Optionally fitted with anti-condensation felt

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.63

6.2

0.70

6.9

0.75

7.4

Downloads

Options

Anti-condensation felt

Condensation that can form on the underside of the cold roof profiles is undesirable because it adversely affects the lifespan and falling drops of condensation are not desired on the inside. The falling drops can cause damage to any stored products and/or goods. On request, Delft can provide the cold roof profiles with anti-condensation felt on the underside.

When using anti-condensation felt, there must be good ventilation so that the absorbed condensation can dry sufficiently.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.

Curious about what we can do for you?

We are here to help you further. Feel free to contact us for more information or a customised quote. We look forward to hearing from you!
