All Concrete floor profiles

DELFT 88V/618

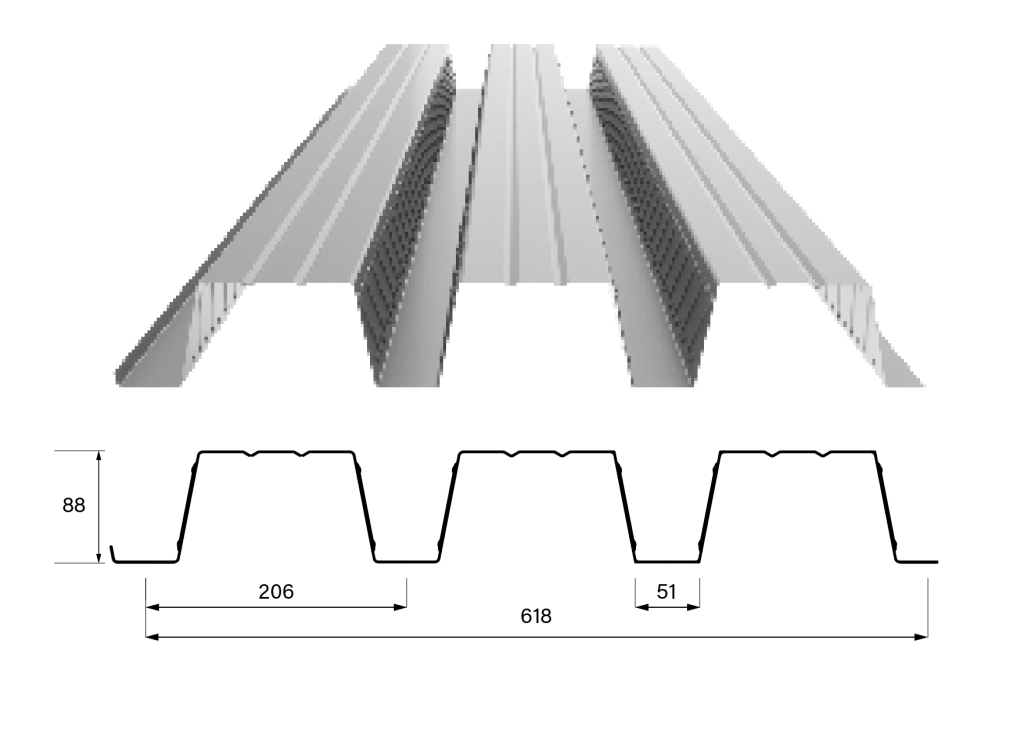

A trapezoidal profile as permanent casing for a steel plated concrete floor. With a profile height of 80mm and an effective width of 618mm, this profile is excellent for renovation projects.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 88V/618

The steel plated concrete floor is ideal for renovation projects where a concrete floor needs to be realised.

  • Low-height trapezoidal profile
  • Features structural ribbing for increased shear strength value between concrete and profile
  • Maximum length 15 metres
  • Available in various steel grades and variable thickness

Specifications

Steel thickness [mm]

Weight [kg/m2]

0.75

10.2

0.88

12.0

1.00

13.6

Downloads

Option

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.
