DELFT 90/500

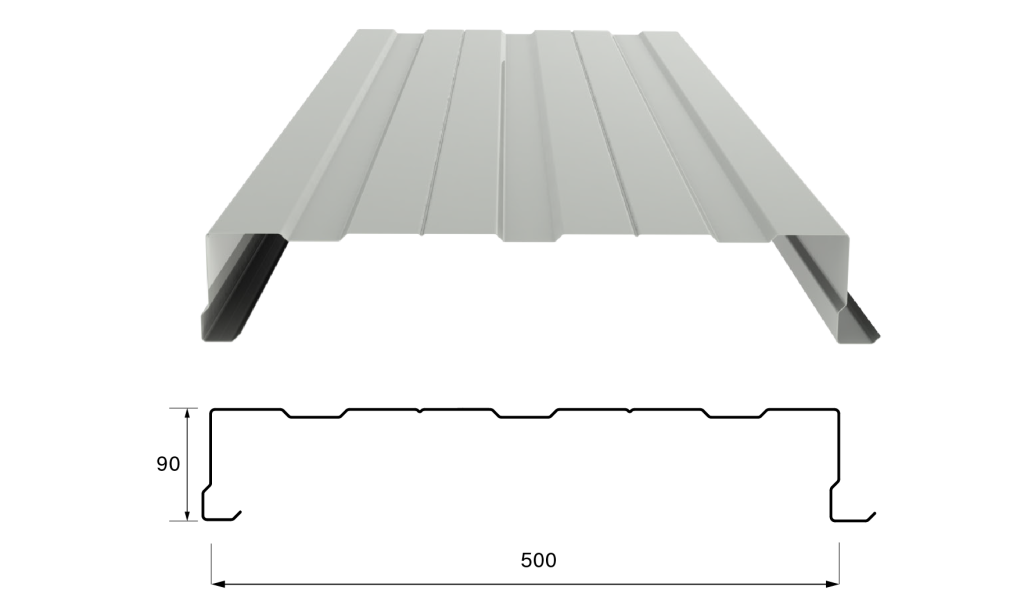

The classic liner tray, with an effective width of 500mm and a profile depth of 90mm. The DELFT 90/500 is ideal as a support structure for profiled sheets. Available in different steel grades and varying thickness to provide a cost-efficient solution for spans and occurring loads.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 90/500

The liner tray is a profiled cassette used as a load-bearing structure for insulation and wall cladding. The DELFT 90/500 is ideal as a support structure for profiled sheets.

  • Perforated variant available for excellent sound-proofing
  • Available in galvanised version or with white interior coating
  • Available in various steel grades and variable thickness
  • Maximum length 20 metres

Specifications

Steel thickness [mm]

Weight [kg/m2]

0.70

8.2

0.75

8.8

0.88

10.4

1.00

11.8

Downloads

Options

Perforate

Sound absorption is a must in many industrial projects to achieve a pleasant acoustic indoor climate. The perforation allows the sound waves to penetrate the applied insulation instead of being reflected into the room.

Please note that when plates or profiles are perforated, this affects the strength and stiffness of the profiles. Check the technical data sheets for more information or ask your contact person at Delft.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.
