DELFT 19/1090

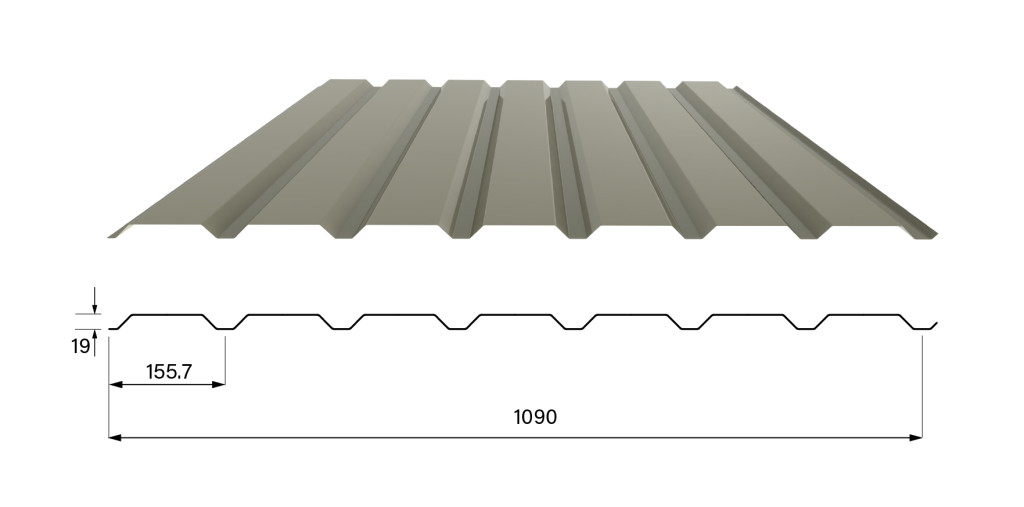

Discover trapezoidal profiles for finishing external walls with a unique profile height of 19mm, an effective width of 1090mm and a profile width of 156m with 7 profiles across the effective width.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 19/1090

DELFT's trapezoidal profiles can be used as uninsulated external wall profiles or, for example, as a finish on an insulating support structure such as a liner tray or carrier sandwich panel.

  • Unique low trapezoidal profile with a height of 19mm
  • Perfo version option for indoor use
  • Available with different exterior coatings
  • Available in various steel grades and variable thickness
  • Available with a maximum length of 15 metres
  • External wall profiles are BES6001 certified

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.63

5.7

3.70

0.70

6.3

4.20

0.75

6.8

4.60

Downloads

Opties

Perforate

Sound absorption is a must in many industrial projects to achieve a pleasant acoustic indoor climate. The perforation allows the sound waves to penetrate the applied insulation instead of being reflected into the room.

Please note that when plates or profiles are perforated, this affects the strength and stiffness of the profiles. Check the technical data sheets for more information or ask your contact person at Delft.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.
