DELFT 35/1035

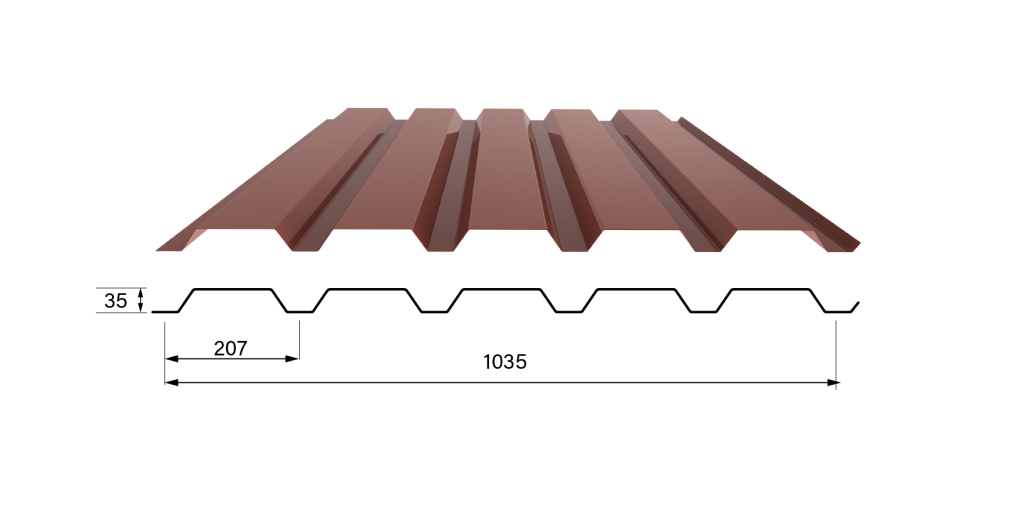

External wall profile with a trapezoidal profile height of 35mm, an effective width of 1035mm and a profile width of 207mm with 5 profiles across the effective width. With its higher profile, the DELFT 35/1035 looks more robust than the DELFT 30/1100.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 35/1035

DELFT's uninsulated trapezoidal profiles are very suitable as uninsulated external wall profiles or, for example, as a external wall finish on an insulating support structure such as a liner tray or carrier sandwich panel.

  • Perfo version option for indoor use
  • Available with different exterior coatings
  • Available in various steel grades and variable thickness
  • Available with a maximum length of 13 metres
  • External wall profiles are BES6001 certified

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.63

6.0

9.40

0.70

6.6

10.90

0.75

7.1

12.00

0.88

8.3

14.90

Downloads

Options

Perforate

Sound absorption is a must in many industrial projects to achieve a pleasant acoustic indoor climate. The perforation allows the sound waves to penetrate the applied insulation instead of being reflected into the room.

Please note that when plates or profiles are perforated, this affects the strength and stiffness of the profiles. Check the technical data sheets for more information or ask your contact person at Delft.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.
