DELFT 50/1000

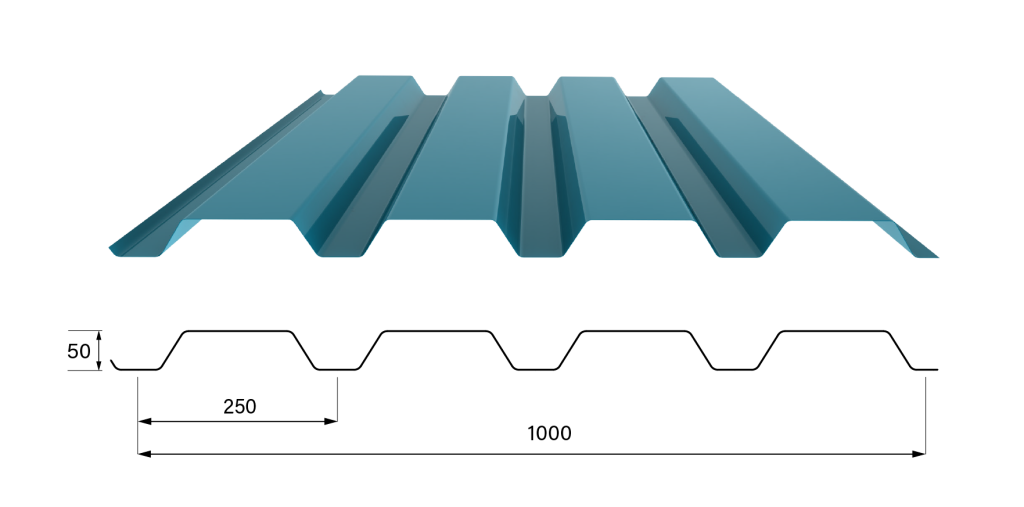

Uninsulated trapezoidal external wall profile with a profile height of 50mm, an effective width of 1000mm with a profile width of 250mm with 4 profiles across the effective width. The DELFT 50/1000 has a coarse profiling.

  • Logistics partner
  • Personal contact
  • Tailor-made service
Request a quote

DELFT 50/1000

DELFT's uninsulated trapezoidal profiles are very suitable as external wall profiles or, for example, as a wall finish on an insulating support structure such as a liner tray or carrier sandwich panel.

  • Trapezoidal profile with an effective width of 1 metre
  • Perfo version option for indoor use
  • Available with different exterior coatings
  • Available in various steel grades and variable thickness
  • External wall profiles are BES6001 certified
  • Available with a maximum length of 15 metres

Specifications

Steel thickness [mm]

Weight [kg/m2]

Ieff [cm4/m]

0.63

6.2

18.40

0.70

6.9

21.20

0.75

7.4

23.20

0.88

8.6

28.80

Downloads

Options

Perforate

Sound absorption is a must in many industrial projects to achieve a pleasant acoustic indoor climate. The perforation allows the sound waves to penetrate the applied insulation instead of being reflected into the room.

Anti-condensation felt

Condensation that can form on the underside of the cold roof profiles is undesirable because it adversely affects the lifespan and falling drops of condensation are not desired on the inside. The falling drops can cause damage to any stored products and/or goods. On request, Delft can provide the cold roof profiles with anti-condensation felt on the underside.

When using anti-condensation felt, there must be good ventilation so that the absorbed condensation can dry sufficiently.

Bij toepassing van anti-condens vilt moet er goed worden geventileerd zodat de opgenomen condensatie voldoende kan drogen.

Films

For optimal protection of the products, the coils, flat plates and strips are provided with a screen film. This protective film ensures optimal protection of the coating during processing. After processing, the film can be easily removed.

Where technically feasible, a sustainable, recyclable film of 70 microns is used, which achieves a 30% reduction in CO₂ emissions.
